适用范围:

上袖、合肩、合摆缝、合缝、压下摆压止口、分段打褶、上灯笼袖

ADVANTAGE：

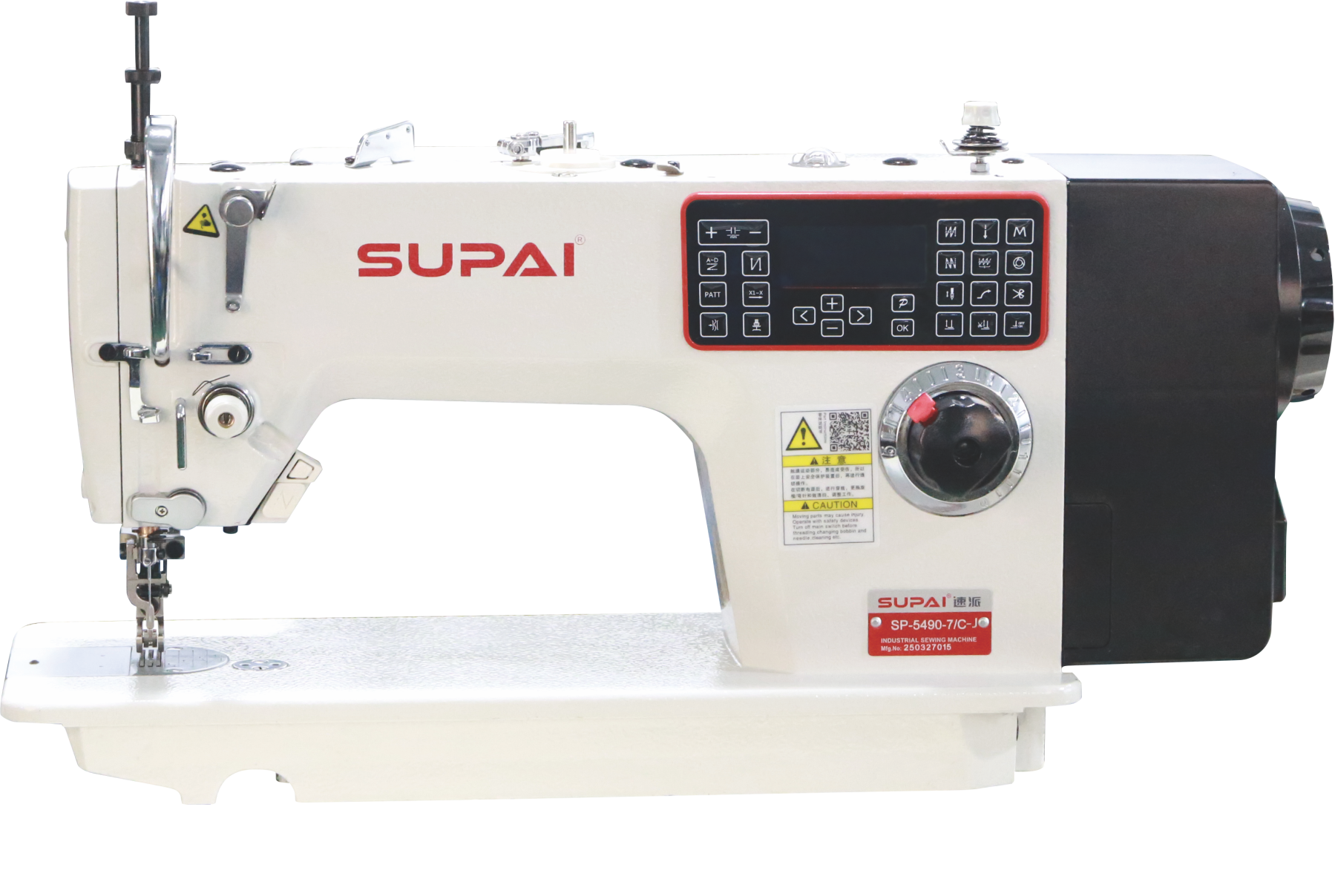

Upper differential feeding flat sewing machine, using stepper motor digital adjustmen

 High speed: 4000 RPM

 Maximum stitch length: 5mm

 Needle stroke: 31.8mm

Press foot lift: manual ≥5mm knee control ≥13mm

Machine needle: DB*1 17#-18#

Spinning shuttle: automatic lubrication cutting special spinning shuttle

Feeding press foot feeding amount: 8mm

Feeding press foot lift: 2.5mm 5mm

Upper differential feeding differential ratio: surplus ≥ 3:1 (less than 2.5 needle distance);

Feed press foot reverse stitch feed quantity adjustment function: feed press foot with reverse stitch feed quantity adjustment Function, synchronous feeding with lower teeth can be achieved when the differential feeding (such as pleating) is reversed. Achieve the smooth and beautiful reinforcement joint

The number of segment pins and segment momentum of the upper difference can be adjusted, and 9 segment momentum can be set

Cutting method: Rotary cutting knife

Standard built-in press foot
