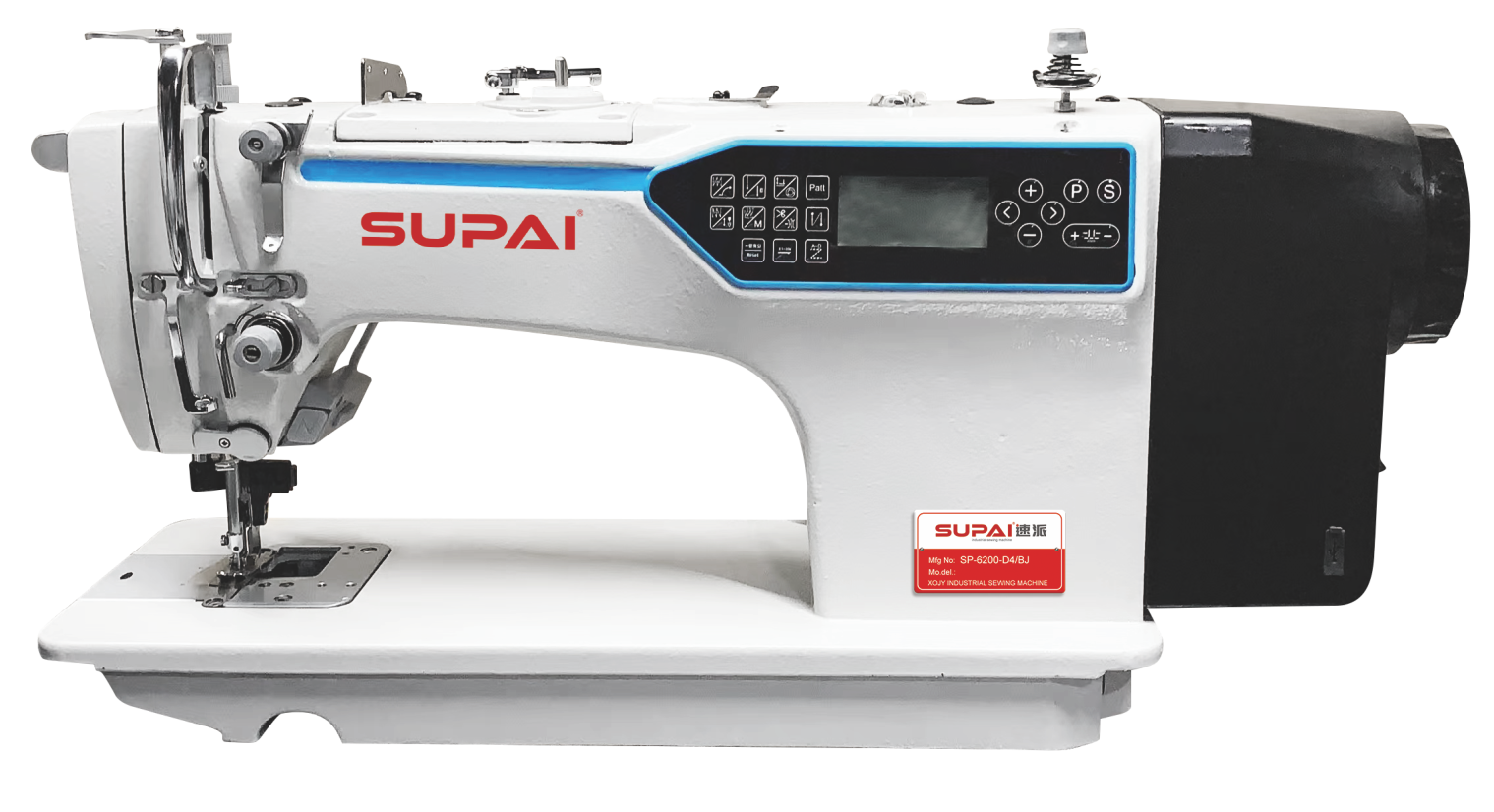

衣领、前襟 西服等

Collar, front suit, etc

采用内置式直驱伺服马达，实现了机器的快速启动和 制动的精确度，大幅度降低了噪音和振动并降低了能 耗。与普通的驱动装置相比电量耗减少35%以上，适 用于缝制各类衬衫、西服或类似服装，特别是其衣领， 前襟等部位，高速缝制时倒顺送料针距能保持一致

针迹长度：0-5mmg

压脚高度：0-9mm

高速转速：5000s.p.m

切刀针位组：可选1/8，1/4，3/16，5/32针位之一

采用独立步进电机控制

有倒缝功能由步进电机独立控制

压脚高度：0-9mm范围内调节，由步进电机独立控制

主轴采用交流伺服电机直驱

采用电子夹线器，可通过控制面板调节夹紧时间（角度）

针杆与切边刀动作可实现同步及异步

供油润滑：挑线杆、刀杆及刀杆套、针杆、针杆套采用润滑脂润滑

落料空间：30mm*50mm

采用电子夹线器，可通过控制面板调节夹紧时间（角度）

采用电子松线

缝纫过程中采用一键式电子切换功能

Adopting a built-in direct-drive servo motor, the machine achieves rapid start-up and highly accurate braking, significantly reducing noise, vibration and power consumption. Compared with conventional drive systems, it cuts energy use by more than 35 %. It is ideal for sewing all kinds of shirts, suits and similar garments—especially for collars, plackets and other critical areas—maintaining consistent forward and reverse stitch length even at high speed

Stitch length: 0-5mmg

Press foot height: 0-9mm

High-speed speed: 5000s.p.m

Cutter needle group: one of 1/8, 1/4, 3/16, 5/32 is optional

Independent stepper motor control

There is a reverse seam function independently controlled by the stepper motor

Press foot height: 0-9mm range adjustment, independent control by the stepper motor

The spindle adopts AC servo motor direct drive

With electronic clamp, clamping time (Angle) can be adjusted through the control panel

Needle rod and edge cutter action can be synchronous and asynchronous

Oil supply lubrication: pick rod, tool rod and tool rod sleeve, needle rod, needle rod sleeve using grease lubrication

Blanking space: 30mm*50mm

With electronic clamp, clamping time (Angle) can be adjusted through the control panel

Use electronic loose wire

One-click electronic switching function is used in the sewing process
